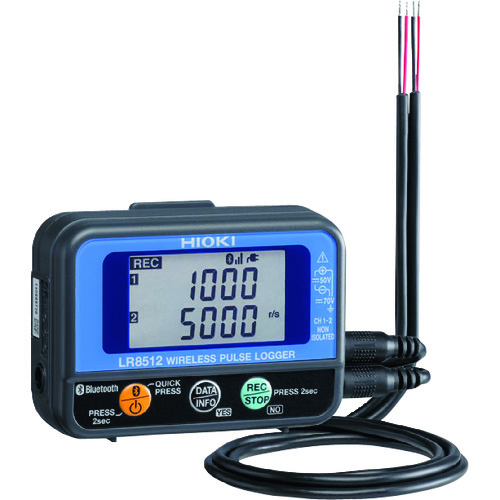

[中断] Hioki Wireless Pulse Logger LR8512带trayser 无线脉冲记录仪 LR8512TRACETUKI

合规标准：EN61010（安全），EN61326（EMC）
测量项目：脉冲信号2CH记录方法：一次性录制方法：一次性记录（记录停止了完整的内存），无尽的录制（带有完整内存的旧数据（具有完整内存）录制模式：瞬时值录制（记录录制的录制值） 0.1/0.2/0.5/1/2/5/10/20/30 seconds, 1/2/5/10/20/30 minutes Recording capacity: 500,000 data/1ch Display contents: Measured value, recording interval, date, time, alarm, remaining battery level, number of recorded data, maximum value, Minimum value
Functions: Bluetooth, alarm, scaling, recording operation retention, prevention of erroneous operation, comment memory, power saving, password authentication
Width (mm): 85
Depth (mm): 31
Height (mm): 61
Voltage (V): DC0 to 50
Calibration document: 〇
Pulse integration (pulse): 0 to 1000M
Radio speed (r/s): 0 to 5000
Input type: Non-voltage a contact （正常的开放式接触），打开收集器，电压输入

-

95G

-

traceabiality系统图
连接电缆（L1010）x 2
AA碱性电池（LR06）（内置单元）x 2
操作指南x 1，使用无线电波的预防措施x 1

-

• ce
