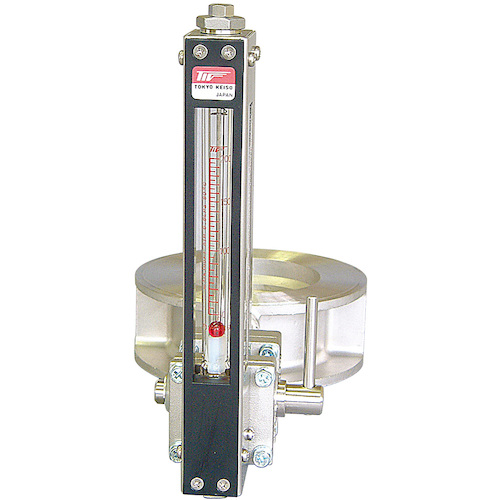

东京机械原始计仪65AJIS10K晶圆 Oriflow仪表JIS10K晶圆 O-180-WC-065-2F

Product name: Orifluorometer (differential pressure flow meter)
Measurement subject: Water or water-equivalent liquid (permeable)
Production diameter: 15A to 100A (dep ing on product code)
Flow rate range: Set for each diameter
Fluid temperature: 0 to 120°C
Fluid pressure: 1.0 MPa or less
Process connection: Rc screw or wafer (separated by product code)
Material composition: Body/SCS14, tapered tube/heat-resistant glass, seal/fluorine rubber, float SUS316
Instruction accuracy: ±3% F.S.
Standard scale range: 10: 2
Compatible fluid: water
Operating pressure (MPa): 1.0
Fluid temperature (℃): 0 to 120
入口连接：65A天气
面对面尺寸（mm）：50
流量（M3/H）：6至30

-

2.9kg

-

-

-

-

-
