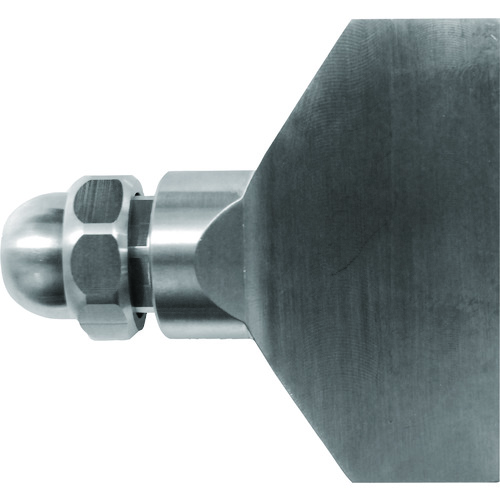

不锈钢冷却液软管（1/2软管系统）的爬升线喷嘴直射宽70 x厚度0.4 不锈冷却液房屋 2DU-SL-76-GS-0.4

Available temperature: -30℃ to +100℃
Maximum operating pressure (liquid) 5Mpa
Maximum operating pressure (liquid) 5Mpa
Maximum operating flow rate ~ 60l/min
Straight type (2DU-SL25, SL-25-SS, SL-50 are wide type)
Number of nozzles: 1
Nozzle length (mm): 82
Maximum operating pressure (kg/(CM2)): 5Mpa
Total length (mm): 82
Nozzle width (mm) h1: 70
Nozzle width (mm) h2: 76
Thickness (mm): 0.4
Inner diameter (mm) : 1/2 Product name: Flare nozzle Straight jet Width 70 x Thickness 0.4 Flow rate (L/min): 60 Type: Straight jet Maximum operating pressure (MPa): 5 Nozzle width (mm): 70 x 0.4 Length (mm): 82.0 Compatible fluids: Acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene Nominal size: 1/2

SUS303

240g

-

-

-

-

-
