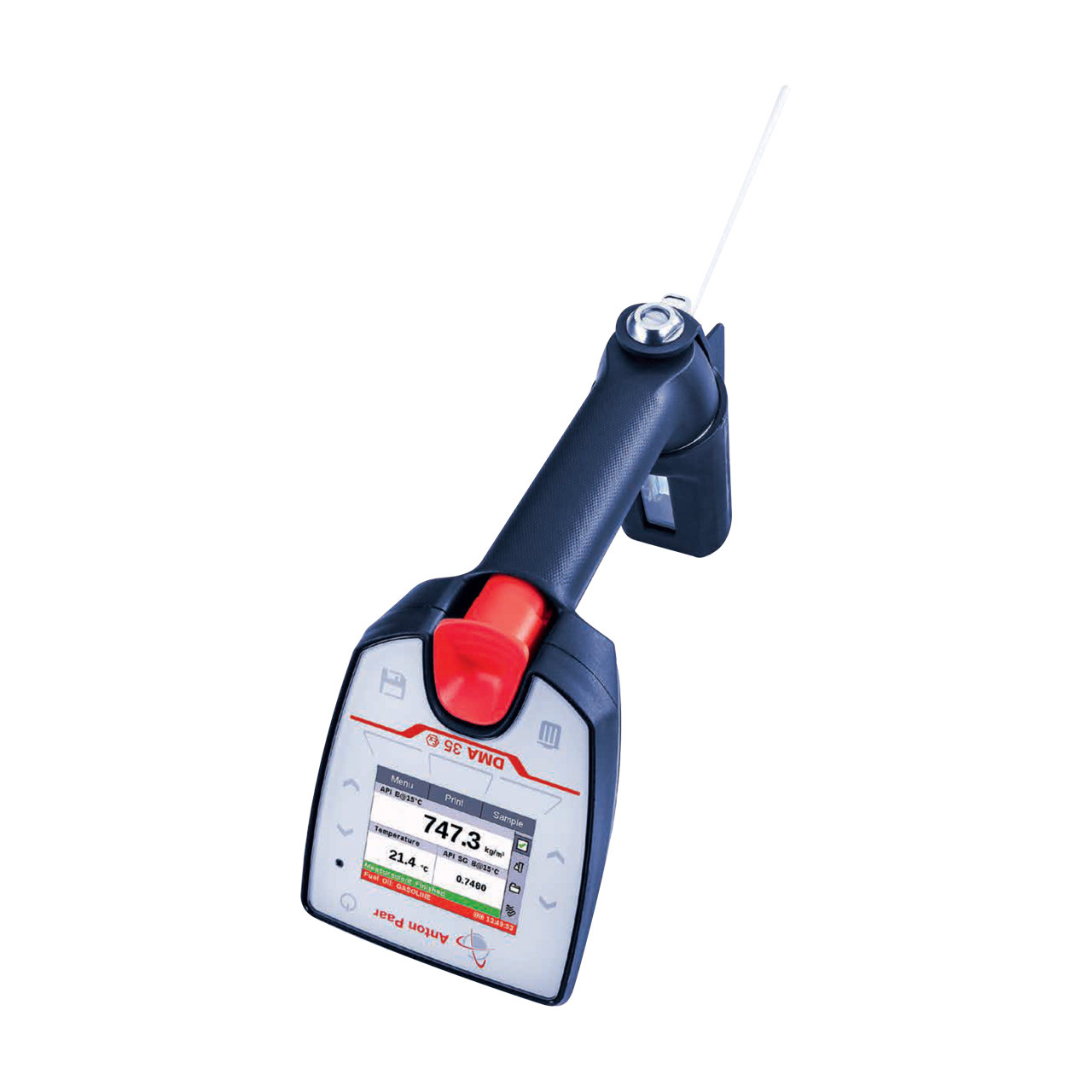

Anton Paar DMA 35 EX Petrol Portable Density Meter

产品描述

Anton Paar's DMA 35 EX Petrol Portable Density Meter is used for measuring petroleum samples in hazardous environments. One portable density meter replaces all the glass hydrometers in the workplace with the same accuracy expected from a lab instrument. The DMA 35 series uses only two milliliters of sample and saves the user time as there is no need to transport the sample to the lab. It is built to withstand the knocks and spills of outdoor use. An RFID interface for quick sample identification and a Bluetooth® interface for convenient data handling in the field are integral parts of the instrument.

产品规格

Note: The special housing of DMA 35 EX Petrol is resistant to petroleum and numerous organic solvents. This meter fully complies with the ASTM D7777, ISO 15212-1, and IP 559 standards.

For measuring petroleum samples in hazardous environments
The only intrinsically safe portable density meter on the market (Ex marking [Ex] II 2 G Ex ib IIB T4)
Fully complies with the ASTM D7777, ISO 15212-1, and IP 559 standards
Protection class IP54
3 year warranty
Measuring Range:

Density: 0 g/cm³ to 3 g/cm³
Temperature: 0 °C to 40 °C (32 °F to 104 °F)*

Accuracy:

Density: 0.001 g/cm³ **
Temperature: 0.2 °C (0.4 °F)

Repeatability, s.d.***:

Density: 0.0005 g/cm³ **
Temperature: 0.1 °C (0.2 °F)

Density Reproducibility, s.d.***: 0.0007 g/cm³
Digital Resolution:

Density: 0.0001 g/cm³
Temperature: 0.1 °C (0.1 °F)

Ambient Temperature****: -10 °C to +40 °C (14 °F to 104 °F)
Supported Measuring Units:

Specific gravity
Alcohol tables
Sugar/extract tables
API functions
H 2SO 4 tables
Ten programmable custom-specific measuring units

Sample Volume: 2 mL
Dimensions (L x W x H): 245 mm x 103 mm x 126 mm
Data Memory: 1024 measured results, 30 measuring methods, 250 sample IDs
Power Supply: Three 1.5 V LR06 AA alkaline batteries
Weight: 1.45 lbs. (660 g)
Interfaces: Bluetooth®, RFID (both included by default)
Protection Class: IP54 (first digit: 5 – protection against dust ingress; second digit: 4 – protection against splash water from any direction)
Intrinsic Safety of Ex and Ex Petrol Version: Ex II 2 G Ex iB IIB T4
Scope of Supply: Portable density meter, filling tube, adapter for syringe filling, syringes, transportation case, rubber protection for measuring cell, three batteries, Allen key, instructions
Menu Language: English, German, Chinese, Japanese, French, Russian, Italian, Portuguese, Turkish
Available Options:

Elongated filling tube
Portable thermal printer with Bluetooth® interface
Bluetooth® USB adapter
Wristband
Carrying strap
ISO calibration

Other Special Functions:

Viscosity correction for reliable measurements, also on highly viscous samples
Gesture control for easy one-handed measurements
Identification of results outside your specified limits

Patents Granted: Smart connection of measuring cell: Patent AT516421 (B1), EP3015847 (B1)

* Measurements up to 100 °C possible
** Viscosity *** According to ISO 5725
**** Sample must not freeze within the measuring cell; Ex and Ex Petrol version: -10 °C to +40 °C (14 °F to 104 °F)

Petroleum products have a long way to go from the drill hole to their final destination. While they pass through the refinery, are transported via pipelines and tankers, stored in terminals, and run through blending procedures, the ATEX-certified DMA 35 Ex Petrol is ready for quick quality and type inspections throughout the whole process.

Typical samples include:

Crude oil
Diesel and gasoline fuels
Lubricants
Nitromethane
